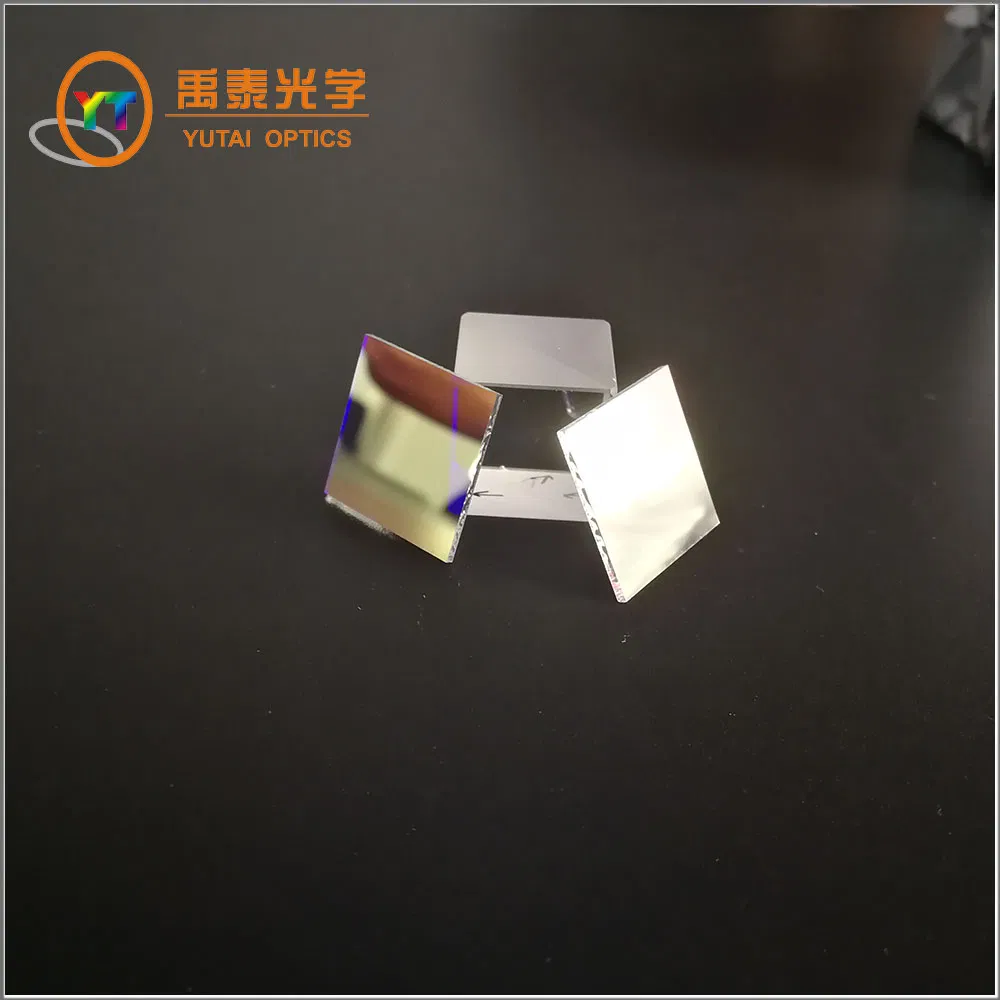

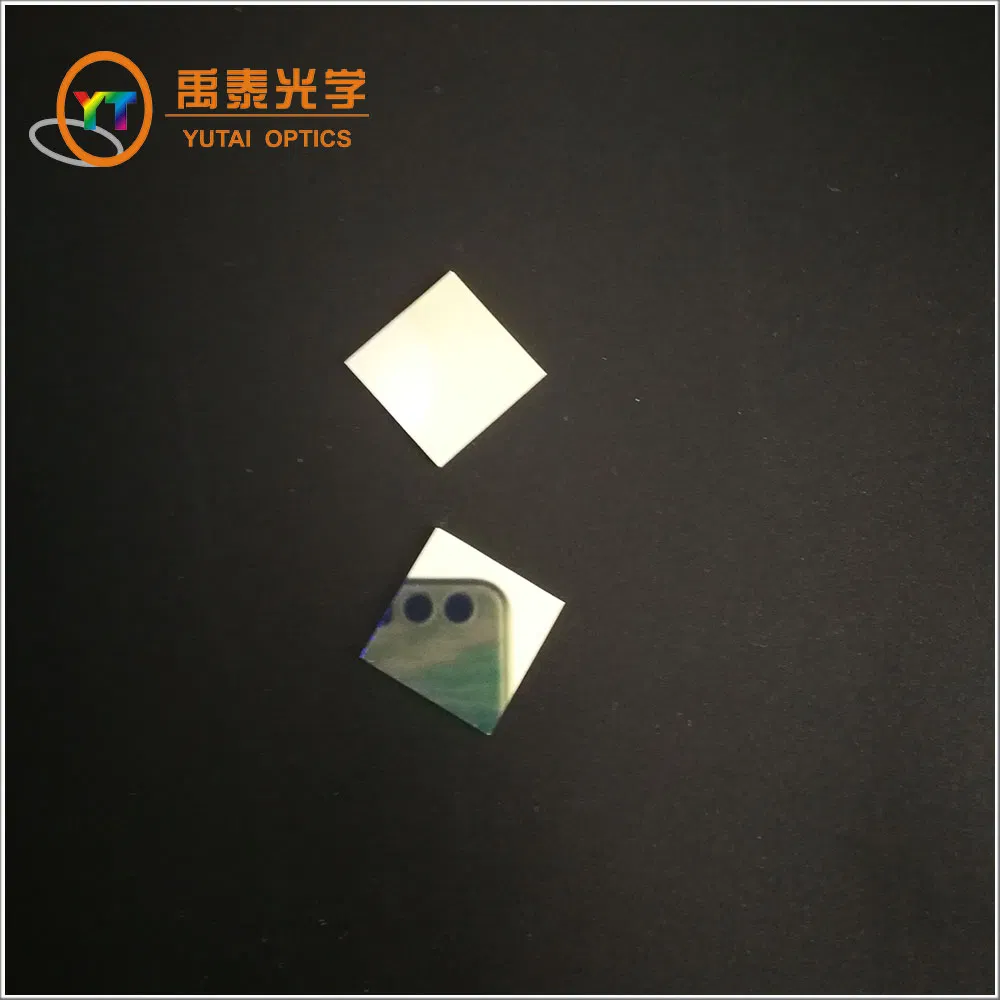

Optical Laser Reflective Mirror

Material:Glass
Usage:Infrared
Structure:Plano-concave
Shape:Aspheric
Reflectivity:≥99%
Edge thickness:3mm
Clear Aperture:≥90%Diamete
Parallelism:< 1'
Diameter tolerance:+/-0.01mm
Thickness Tolerance:+/-0.1mm
Focus Length Tolerance:+/-2%~0.5%
Surface Quality:60/40
Radius:R5~5000mm
Centration:1~5 arc min

Product DescriptionFeatures

Semiconductor Si wafers
Prime grade/high quality
Diameter from 2" to 6"
Ultra thin or ultra thick
Crystalline orientation <100>, <111>, <110>
Most resistivity range
P type/ Boron, N type/Phos, As doped
Heavily doped or intrinsic wafers
Single side polished or double sides polished
TTV<5um
Warp:<30um
Particles:<[email protected]

Application : Laser Cutting, laser engraving, co2 laser cutting machine

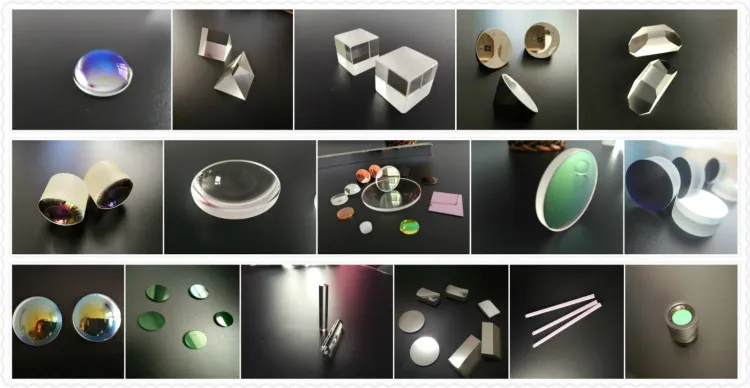

Other Items





Factory information

Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
    As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation.YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.

Our Advantage

Sells Team
Yutai Optics has a professinal sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

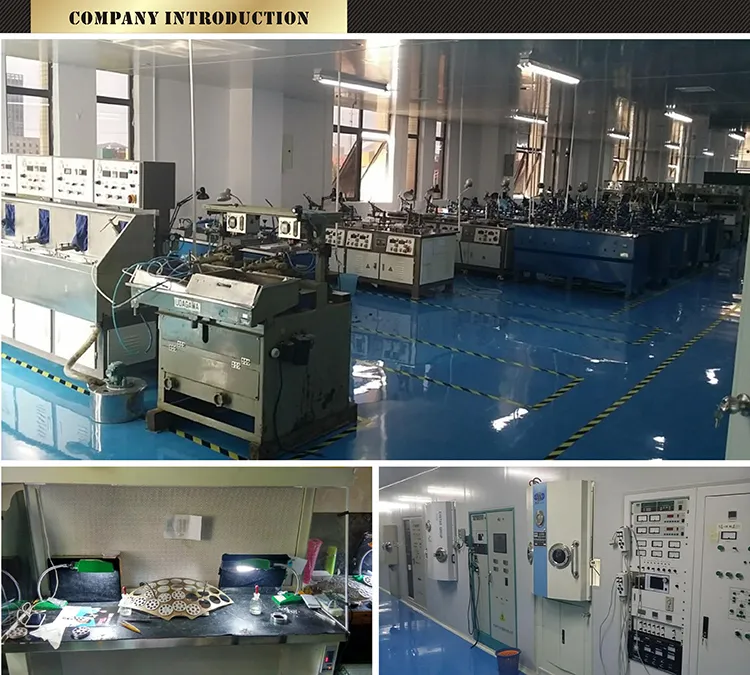

Produciton Team
Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine,  Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph,  Grinding machine,nanotech.250upl,talysurfi120.

Inspection Team
Advanced testing equipment and methods are important guarantee for the production of high-precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.



Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping

Packaging & Shipping
 1 Package Detail: A. Standard carbon and envelop with plastic foam.
                               B. Safety green carton.
                               C. Customized.




2 Delivery Detail: Within 30 days.(Also depand on the quantity)
