Product DescriptionThe electronic universal testing machine ((Digital display and computer type))is mainly used for testing mechanical properties such as tensile, compression, bending, bending, shearing, peeling and tearing of various metals, non-metals and composite materials. It can also test ceme......

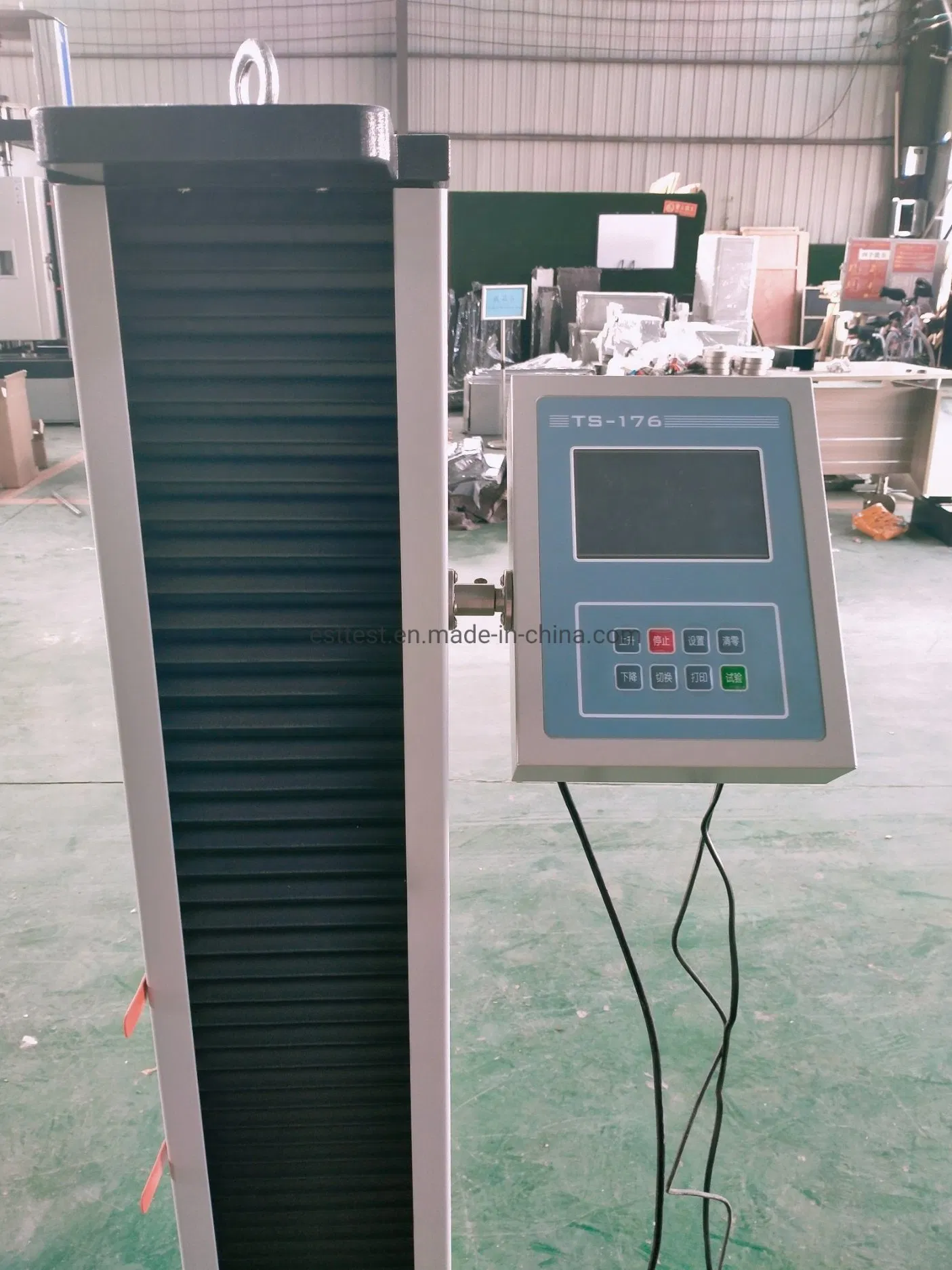

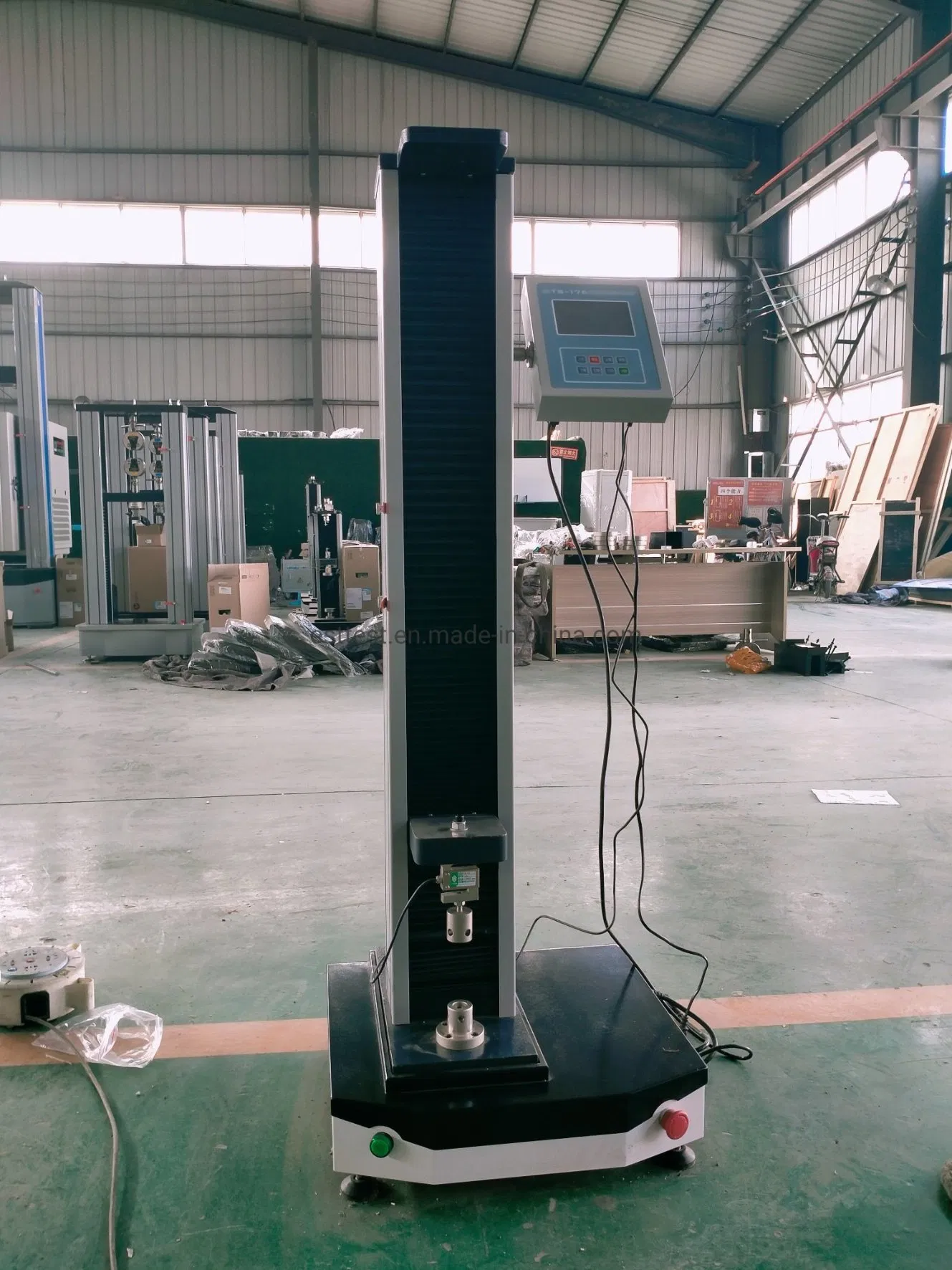

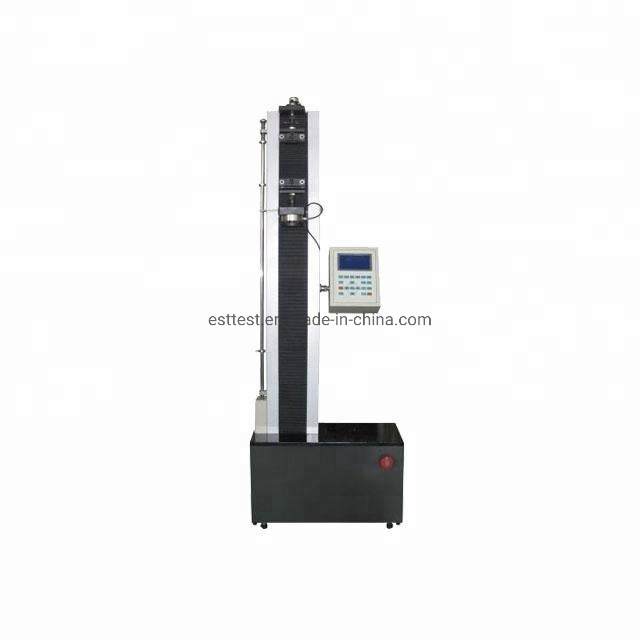

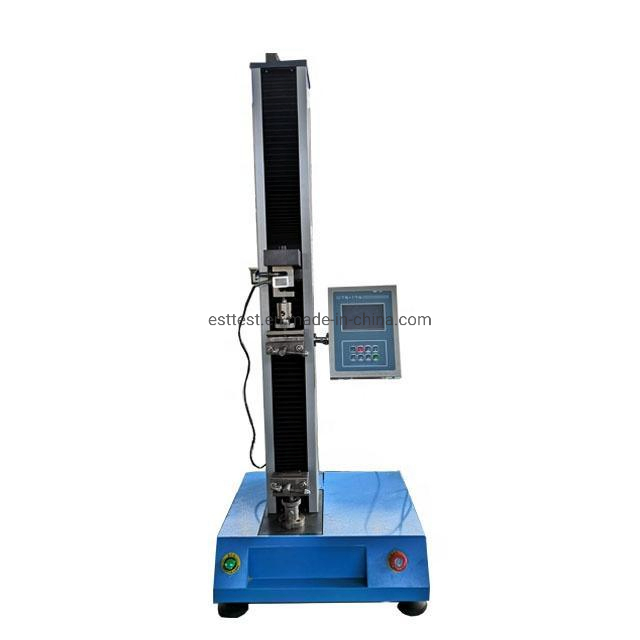

The electronic universal testing machine ((Digital display and computer type)
)is mainly used for testing mechanical properties such as tensile, compression, bending, bending, shearing, peeling and tearing of various metals, non-metals and composite materials. It can also test cement and other building materials Compressive strength and flexural test of cement. The system adopts microcomputer closed-loop control, has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement.
Database management of test data, you can use Excel and other software to communicate with the test database; the machine has the characteristics of beautiful appearance, convenient operation, stable and reliable performance, no pollution, low noise and high efficiency.
Range Parameters | 10N | 20N | 50N | 100N | 200N | 500N | 1000N | 2000N | 5000N |
Maximum test force(N) | 10 | 20 | 50 | 100 | 200 | 500 | 1000 | 2000 | 5000 |
Precision grade | 1or 0.5 grade | ||||||||
Test force resolution(N) | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 | 0.1 | 0.1 | 0.1 |
Test force display value resolution | 1/300000 | ||||||||
Testing force measuring range | 1-100%F.S | ||||||||
Deformation range | 1-100%F.S | ||||||||
Distortion value error | Within 1% or 0.5% of indicating value (depending on the machine precision level) | ||||||||
Displacement indication error | Within 1% or 0.5% of indicating value (depending on the machine precision level) | ||||||||
Displacement resolution | 0.01mm | ||||||||
Effective test space | 350mm/600mm/ can customize | ||||||||
Speed adjustment range | 0.01-500mm/min | ||||||||
Power Supply | 220V/50Hz | ||||||||







For more details, please kindly contact Ms.Nancy.
