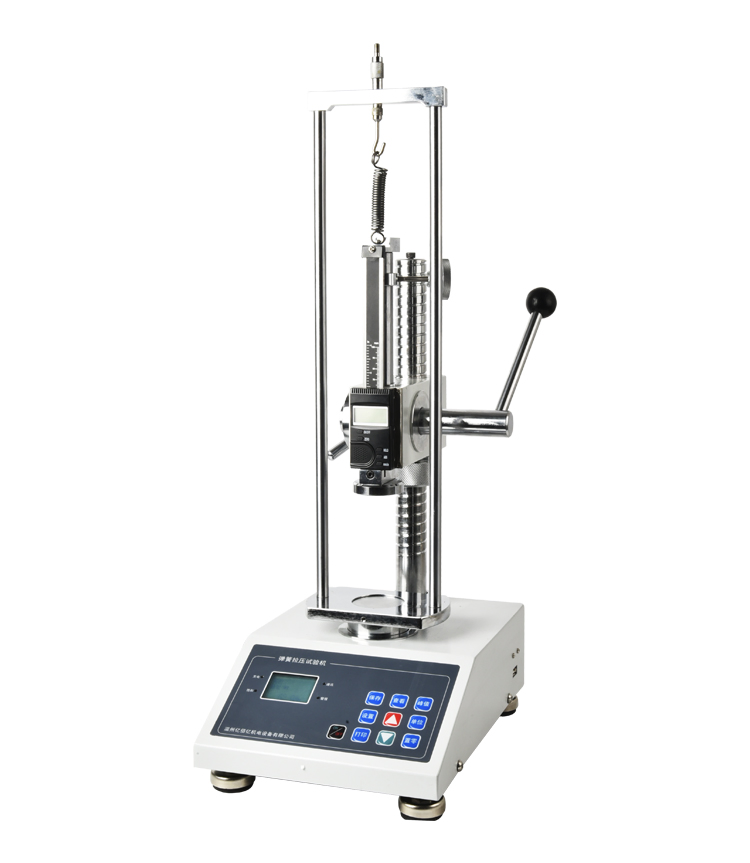

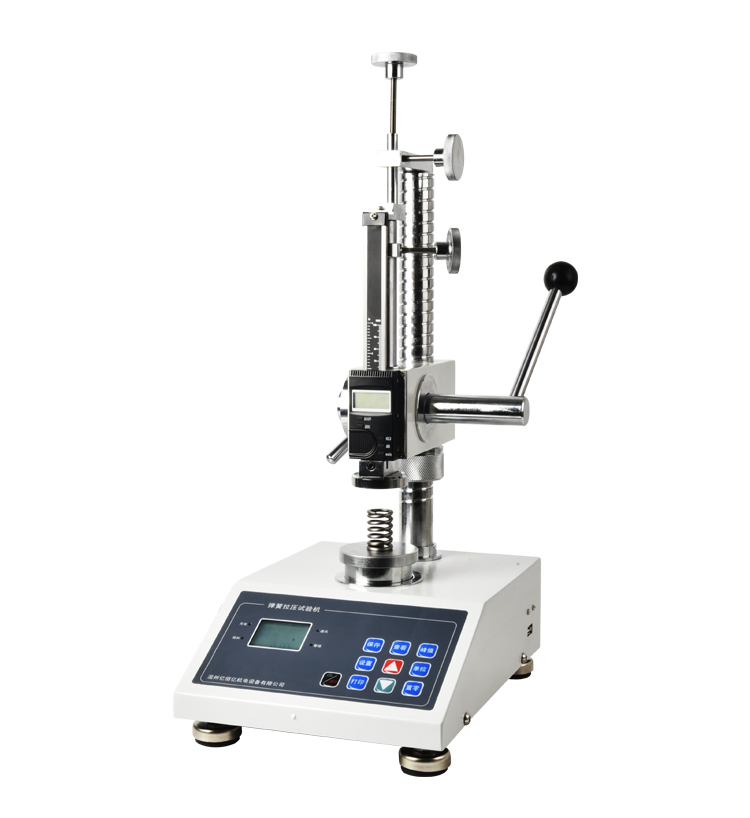

Medium Test Range From 50 to 500n Digital Display Spring Tension and Compression Testing Machine

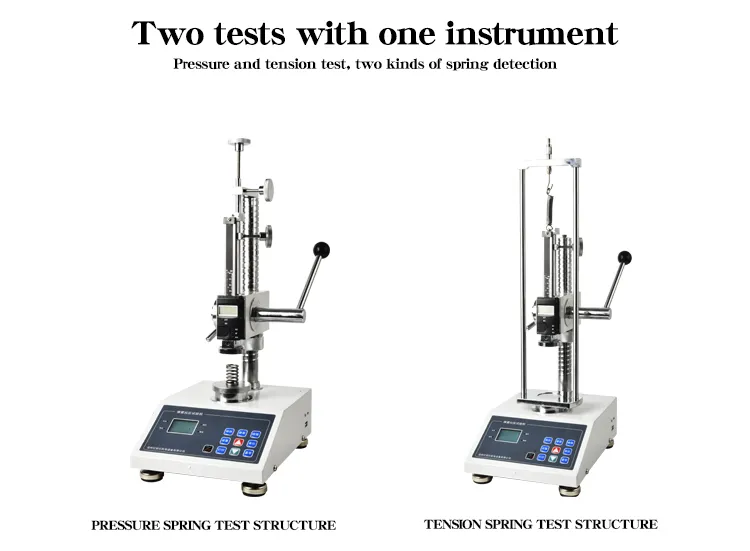

Product DescriptionSpring tensile and compression tester is a special instrument for testing the relationship between deformation and load characteristics of tension and compression springs. It is suitable for working load test under certain working length of tension and compression spring. This tes......
Send Inquiry
Product Description

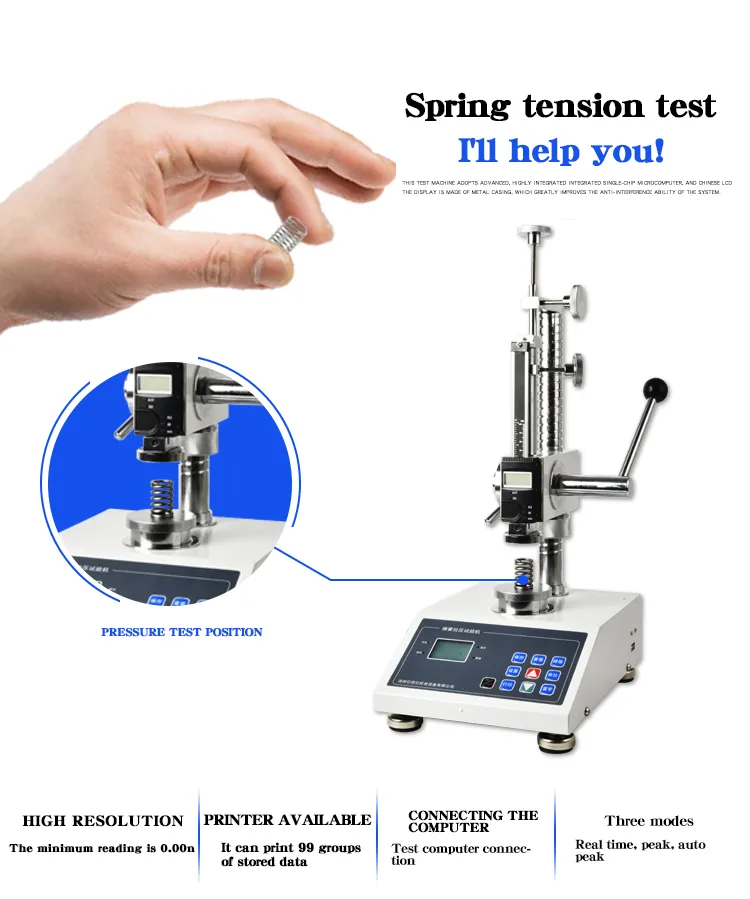

Spring tensile and compression tester is a special instrument for testing the relationship between deformation and load characteristics of tension and compression springs. It is suitable for working load test under certain working length of tension and compression spring. This testing machine uses an advanced, highly integrated integrated single-chip microcomputer, and a English liquid crystal display. The appearance uses a metal shell, which greatly improves the anti-interference ability of the system.
Max test force | 10N | 20N | 30N | 50N | 100N | 150N | 200N | 300N | 500N | 1000N | 2000N | 3000N | 5000N | ||
| Test force resolution(N) | 0.001 | 0.01 | 0.1 | ||||||||||||
Displacement resolution | 0.01mm | ||||||||||||||
| Compression stroke(mm) | 60 | 90 | 150 | ||||||||||||
Pressure pate diameter(mm) | φ34 |
φ49
| φ108 | ||||||||||||
| The test spring max.length(mm) | 80 | 150 | 200 | ||||||||||||
Test force indication relative error | ±1% | ||||||||||||||
| Power | 220V/50Hz | ||||||||||||||
Note | We could also make non-standard equipment as per customer's requirement. | ||||||||||||||
For more details, please kindly contact Ms.Nancy.
